DMIX  DM-1101series

Digital discussion conference system

Host features:

● Full digital conference technology, control and transmission are digital signals, the system is connected by professional network cables, the transmission distance between devices can reach 100 meters;

● Frequency response reaches 20Hz-20kHz, achieving CD-level sound quality;

● Unique wheel-pulling operation, through the knob control panel can be centralized control of all meeting functions, more accurate and more efficient;

● Equipped with 1.6-inch LCD display, Chinese and English menu display, you can order the language on demand;

● Built-in input and output digital volume adjustment, humanized adjustment of system input and output signals;

● The system can customize the conference unit number, which can effectively avoid ID address conflict;

● With system detection, can detect the system list and working status, and can locate the fault location;

● The system supports the use of 60 chairman units at the same time, one of which can be designated as the executive chairman unit;

● Super anti-interference ability of mobile phone, no noise when calling;

● The system has the line live "hot swap" function, so that the safety and stability of the system can be strongly guaranteed;

● With two RS-232 serial ports, one can be connected to PC computer, central control system; Another can connect to HD video matrix;

● Support video tracking function, support off-line control camera preset bit Settings;

● With RS-422, RS-485 and RS-232(with converter) and other video control modes;

● Built-in balanced and unbalanced audio input, unbalanced audio output interface;

● Four microphone management modes:

- Number Limit mode: The number of units that can be opened at the same time ranges from 1 to 6

- FIFO mode: When the limit is reached, the last open cell overwrites the earliest open cell

- Request to Speak mode: All representative unit speakers are rejected or approved by the Executive Chair unit

- Free Discussion mode: Allows all meeting units to open at the same time

● With 4 unit output, each can connect 15 conference units, can connect 65535 conference units at the same time;

● With "one-line hand handle", "Y-line connection", "splitter hand handle" and "ring hand handle" a variety of connection methods;

● The system has two modes of meeting and speech;

● 1U international standard design, can be installed in 19-inch cabinet, aluminum alloy body, built-in anti-static treatment, can resist 8000V static electricity;

● Built-in international general power supply and voltage regulator system to ensure safe use under unstable voltage conditions;

● With the conference management software, more value-added functions can be achieved, making the operation easier, more efficient and more user-friendly.

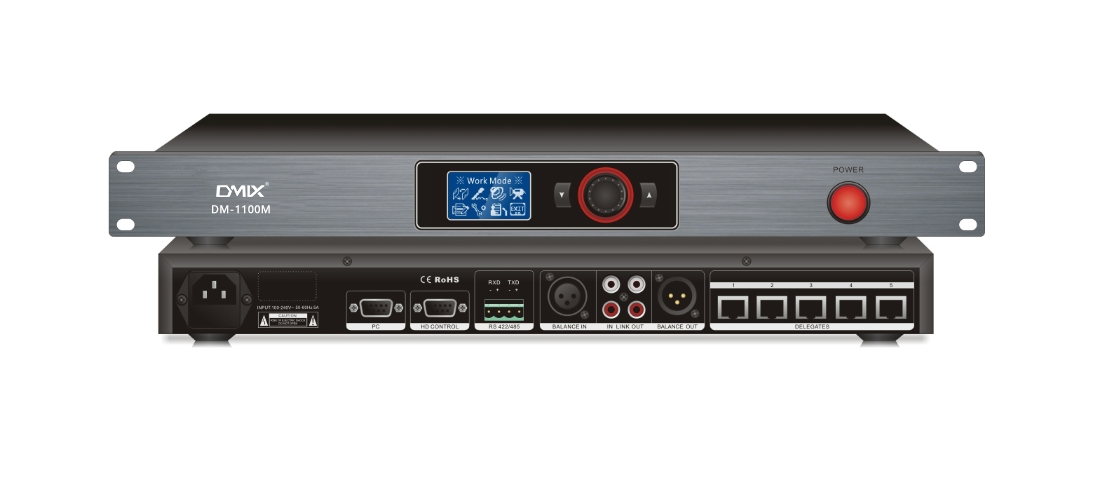

DM-1100M   Host features:

Microphone features:

● Using Raymond digital conference technology, in line with IEC60065 international standards;

● Full digital audio transmission technology, point-to-point access mode, long-distance transmission sound quality will not decay, the distance between devices can reach 150 meters;

● Embedded design, fashion, exquisite, noble, solemn temperament;

● There are two installation options: under table fixed and desktop fixed:

1, with arbitrary allocation of ID address, easy to install and avoid ID address duplication;

2, the conference unit adopts the network cable one-line hand-in-hand connection mode;

3, the system has the line live "hot swap" function;

4, free from external driving source interference, with strong resistance to mobile phone interference;

5, the conference unit has automatic gain function;

6, with five microphone working modes:

- Quantity limit mode

- FIFO mode

- Request speaking mode

- Voice activated mode

- Free discussion mode

7, the chairman unit has the priority to speak, is not limited by the number, can close all the representatives who are speaking;

8, with video tracking camera, video tracking function can be realized by default;

9, the system supports the simultaneous use of 150 chairman units, one of which can be designated as the executive chairman, through the proprietary menu can be achieved:

- Working mode change

- Turn off the specified microphone

- Grant or deny requests to speak

- Turn off all microphones

- Turn off the first microphone on

10, with the conference management software can achieve more value-added functions, so that the operation is easier, more efficient, more humane.

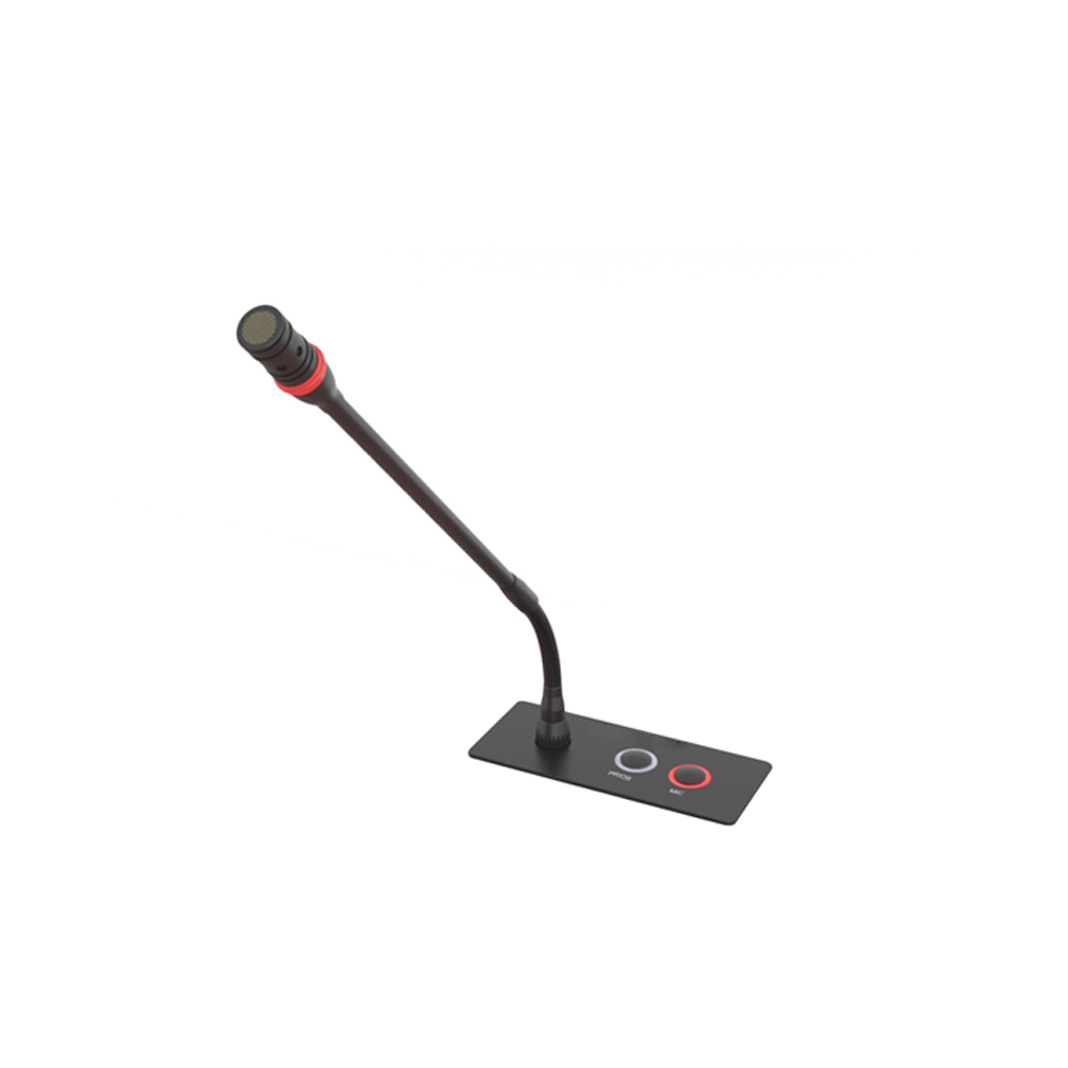

DM-1101C Chair module

DM-1101D stands for cell
