DMIX  DM-6000series

Discussion conference system

Host features:

● Five microphone management modes (support open microphone 1 ~ 6);

● The host has the five-in-one function, which can be set as the system host, backup host, expansion host,

 consolidation host and allocation host;

● The host has dual hot backup function, dual software backup function, camera tracking dual backup and

 other functions;

● The system supports up to 8 conference room splitting/merging function (optional function);

● Host audio signal supports 48kHz and 32kHz audio sampling frequency output selection;

● The host has independent adjustment of the volume of each unit,5 EQ balance adjustment;

● With bass cutting function, built-in noise gate function;

● With the function of adjusting the automatic/manual gain of each unit;

● Line 1 input interface can be configured as microphone input or linear input;

● Line input and output with independent volume adjustment function;

● Host with HD matrix control serial port, with direct control of the same code HD video matrix, video switching;

● Host has conference audio matrix technology, built-in n×8 audio matrix processor, can divide any number of microphones into 8 areas, according to different

The sound field environment of the meeting room can carry out up to 8 independent audio output, effectively avoiding the problem of microphone screaming and facilitating the system tuning;

● Support hybrid remote video conference function, can output the digital audio signal of the venue to the remote video conference terminal through the USB interface of the host, to achieve seamless connection of digital audio signal;

● Host supports multi-channel DANTE protocol;

● The host connects to the computer through TCP/IP protocol, and can carry out remote control maintenance and system upgrade;

● The host comes with 1 ALARM fire alarm linkage trigger interface, providing fire alarm information, the first time to remind the meeting personnel to evacuate;

● Support up to 100 representatives to apply for speech sequence, support real-time application sequence display on PC software;

● VIP unit can be designated at will, supporting 150 chairman units;

● Conference monitoring function, dynamic monitoring of the conference process;

● One-click backup and system recovery can be realized with conference management software: Conference management software has one-click backup import and export function, which can back up all the configuration of the system host (including video tracking data, etc.) and save it to the computer; You can quickly export the configuration file to two hosts with the same configuration function.

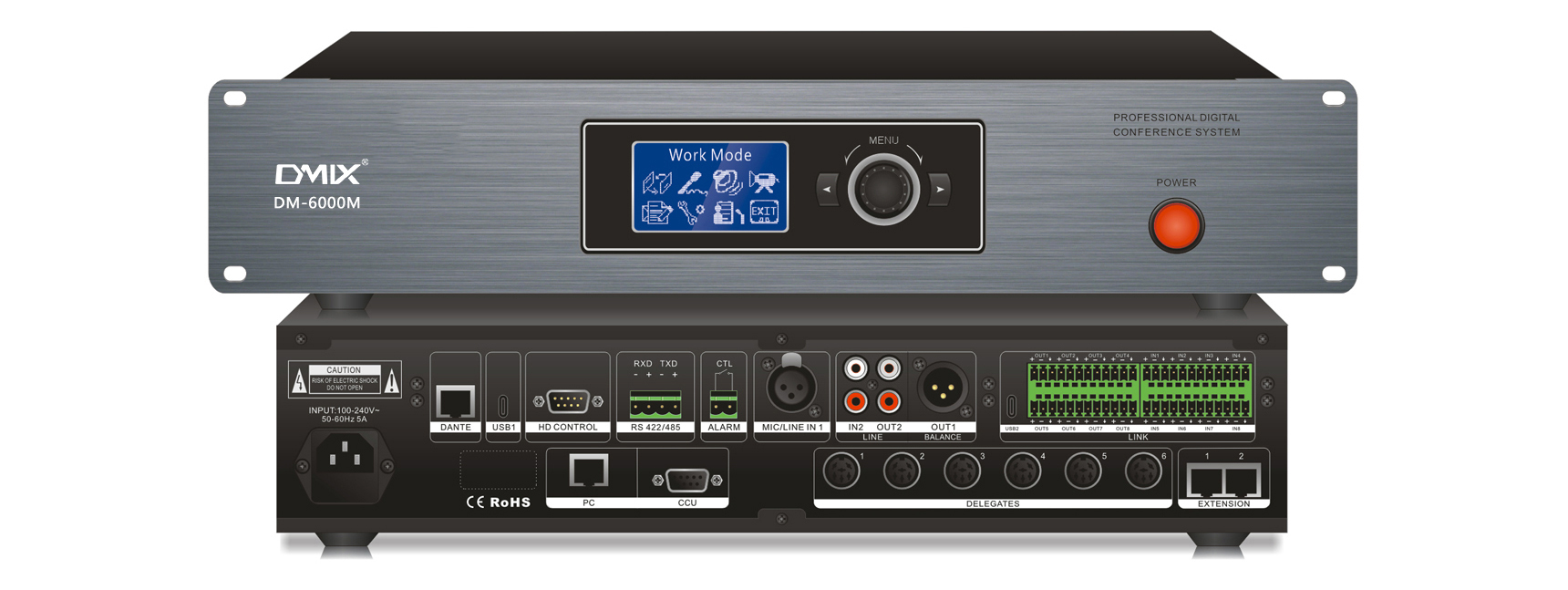

DM-6000M   Host machine

Power consumption:

Microphone features:

● The appearance is simple and fashionable, exquisite, noble, is the ideal equipment for high-end conference occasions;

● Full digital audio processing and transmission technology, point-to-point access mode, long-distance transmission sound quality will not decay, the distance between devices can reach 150 meters;

● Equipped with square super-core microphone, 14mm diameter gold-plated condenser core, long pickup distance;

● 2-inch LCD color touch control screen, display contrast can be adjusted independently.

● With clock display, conference service functions;

● Through the touch control screen of the microphone, you can set the functions of manual gain adjustment, automatic gain adjustment, microphone bass cutting on/off, etc.

● 5 EQ equalization adjustments can be made through the touch control screen of the microphone, and special EQ can be set for each microphone;

● The square base is made of zinc alloy material, with square bar, the overall simple and exquisite, ergonomic;

● Square microphone rod and zinc alloy base integrated design, can be up and down 55 degrees, around 180 degrees rotation, flexible control;

● Square microphone rod with high directional electret microphone and red halo for speech indication;

● Strong resistance to mobile phone interference;

● With digital and analog dual backup function;

● With "Y-line handhold" and "ring handhold" a variety of connection methods;

● The system has the line live "hot swap" function;

● Each unit has an arbitrary ID address to facilitate installation and avoid ID address duplication;

● With five microphone working modes:

- Number Limit: The number of units that can be opened at the same time ranges from 1 to 6

- First in, first out: When the limit is reached, the last open cell overwrites the earliest open cell

- Requests for speeches: All speeches are vetoed or approved by the Chair

- Voice activated: The voice controls the opening unit

- Key speaking mode: Press and hold the key to open the unit and let go to close the unit

● With video tracking camera, video tracking function can be realized;

● The Chairman has the priority to speak and can close all the speaking units;

● The system supports the use of 150 chairman units at the same time, one of which can be designated as the executive chairman, and the working mode can be switched through the special menu:

-Approve or deny a request to speak -Turn off specified microphones -Turn off the first microphones -Turn off all microphones

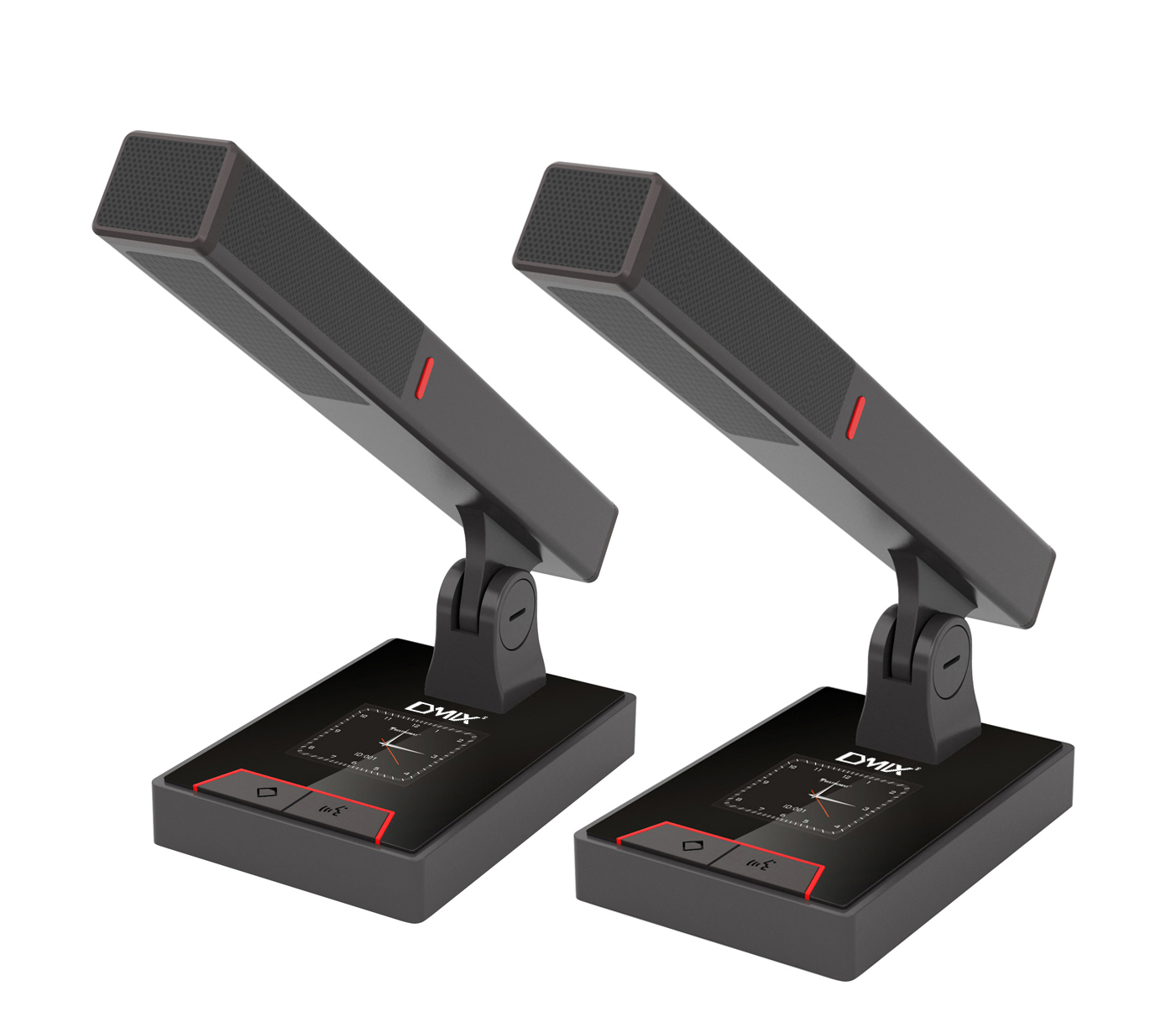

DM-6000C Chair cell

DM-6000D stands for cell
