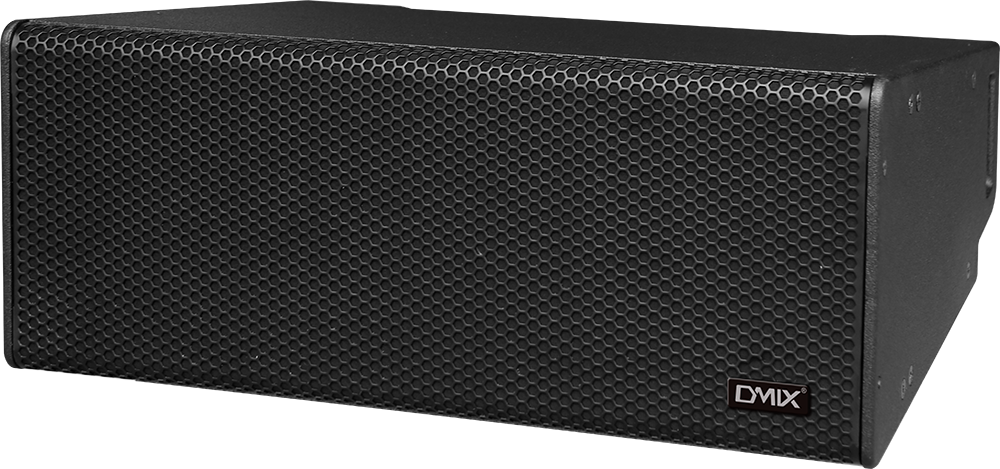

DMIX   MLA 210a

Dual 10-inch self-powered line array cabinet


Product parameter


MLA 210a
Dual 10-inch self-powered two-way line array loudspeaker
LF: 2×10" driver (2.5",65mm voice coil)；
HF: 1×3" (75mm voice coil) compression driver
55Hz-20kHz(-10dB)
136dB(peak)
100°×10°
LF:600W, HF:90W
LF:99dB, HF:110dB
DSP control
740×294×547 (W×H×D)

Speaker model:

Product type:

Components:


Frequency range:
Maximum SPL:
Directivity (H×V):
Rated power:
Sensitivity:
Frequency crossover:
Size (mm):

Power amplifier module:

  • Amplifier power: LF: 1000W，HF: 300W， Class D
  • Inputs: 2 balance XLR input and link，or  AES input and link，2 Dante input and output
  • DSP control: RS485, USB or Dante

  • Active two-way line array system designed specifically for permanent installations, equipped with high-efficiency bass units.
  • Utilizes a newly designed high-frequency waveguide capable of maintaining ultra-high-frequency projection performance over long distances while providing precise high-frequency directional control.
  • Factory presets for conventional applications and savable/reusable scene configurations.
  • Through D-Netware system management software, users can configure system networks according to practical applications, monitor and manage system operational status in real-time. The software visually displays: System ID, Name, Module Group Processing, Operating Temperature, Gain Level, Connection Status, Input Signal Channel, Mute Control, Parameter Copy, Parameter Paste.
  • Each ID channel features complete DMIXAudioDSP with: 8-band parametric EQ (input/output), Delay, Adjustable High/Low-pass Filters, Dynamics Processor with Noise Gate, 180° Phase Inversion, Operational Status Monitoring including Temperature and Runtime.
  • Incorporates DMIX's industry-leading D-MODULE digital amplifier module technology - lightweight, high-power, with low heat generation. The DSP-equipped digital amplifier controls: Crossover Points, Frequency Response, Thermal Protection Limiters.
